Standard Filling Platform | E0300 Model | Emco Wheaton

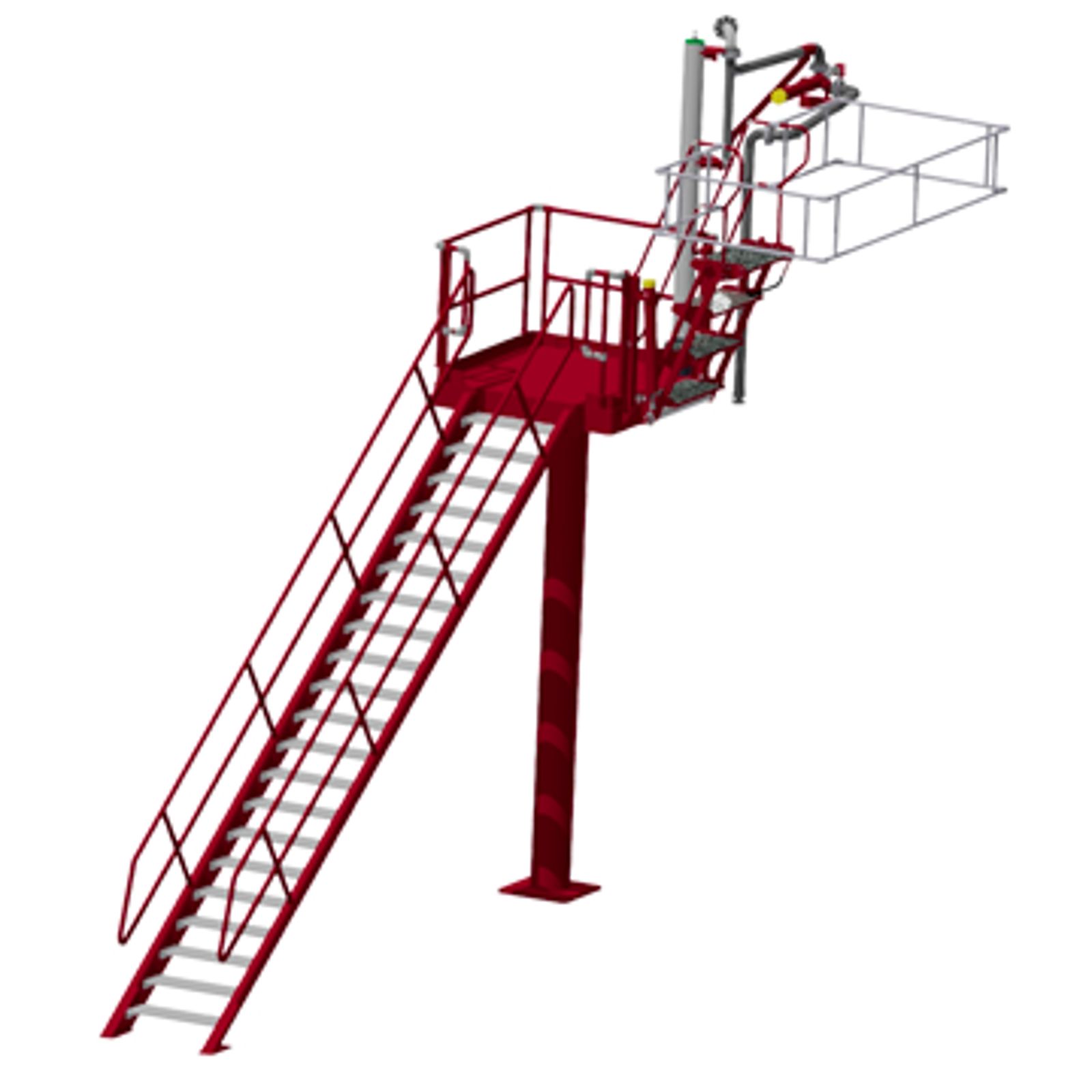

Our Standard Filling Platform E0300 can be employed in many different environments and provides the highest level of working safety.

The E0300 encompasses the following features:

Safety hand rail
Hot-dip galvanized anti-skid gratings
Welded top and base plate
Hot-dip galvanized anti-skid steps
Platform, stairways and stand post are bolted together
1600 mm platform made of welded sectional steel
Stable design according to EN ISO 14122, with static approval
Hot-dip galvanizing of complete loading rack is possible

Max. foundation design:

Bending moment = 93.9 KNm
Vertical force = 78.6 KN
Horizontal force = 4.1 KN

Hand rail of Platform designed in modular System, Position of Folding Stair and Loading Arm can be changed later on
Up to 1 loading arms and one folding stairway with safety basket is possible
Hand rail of stairway and platform can be delivered also with a double safety bar

Bulk Folding Stairway E0264 Model

For the specific application of bulk loading, the E0264 folding stairways are equipped with additional lateral platforms that include side railings and knee guides for safe access to the dome area.

Protective Grating Systems for Safety

Our Protective System consists of gratings, back rests and folding stairway. The system is an important safety feature for accessing the top of tank trucks and is also designed to keep the operator safe while working on the top of tankers.

Safety Cages for Operator Protection

Used to safeguard the operator from falling off the vehicle during operation. We differentiate between baskets fixed onto the handrail of the folding stairways and separate moveable safety baskets which are operated independently from the folding stairways.

Standard Folding Stairway E0264 Model

The E0264 Folding Stairways are used to bridge the distance from loading racks to tank cars or rail tankers, however they can also be used for other similar applications.

Wide Stairs E0264-3000 for Safety

Our folding stairways fulfil high safety standards. The extra large folding stairway E0264-3000 meets the highest safety requirements.
