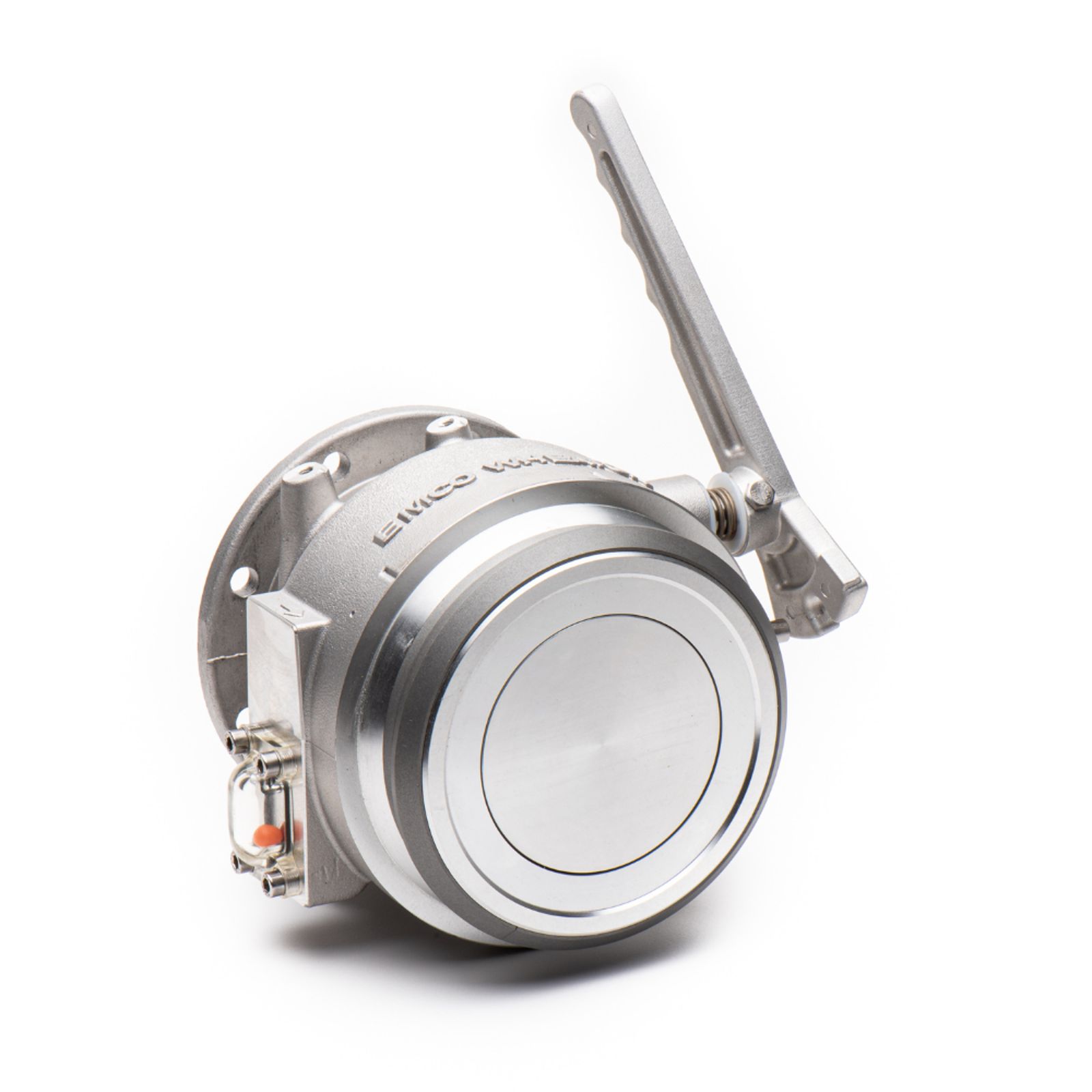

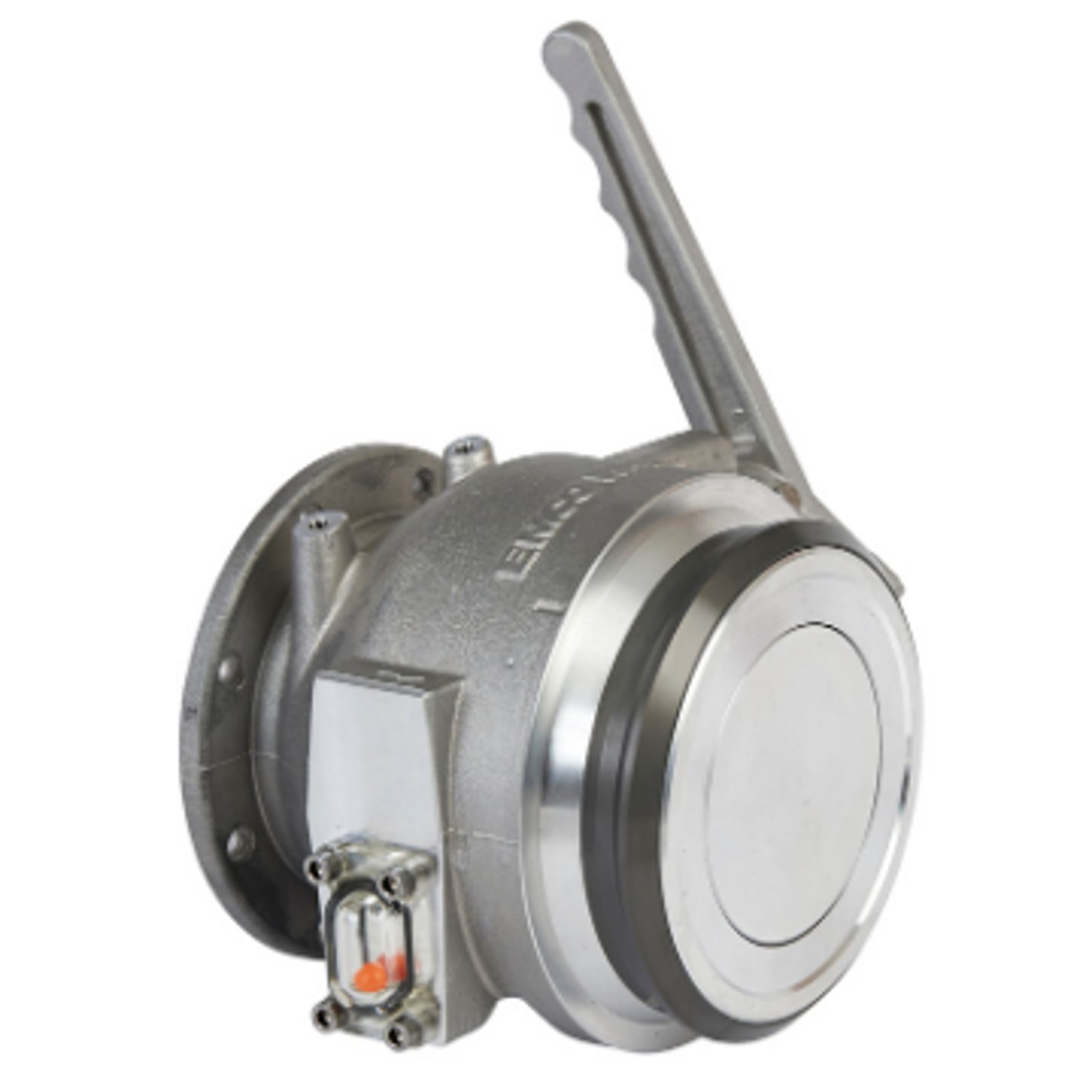

API ADAPTER | F5000 Series

 EMCO Wheaton’s F5000 series of API adapters are installed on road tankers, supporting filling at the loading rack and unloading by hose at the service station.

Their simple design and durability make them the ideal choice for oil major and transports of petroleum products across the world.

All variants conform to API RP1004 for total compatibility.

Our API adapters are designed to make transfer simple, safe and effective. Made of a lightweight one-piece aluminium body and hard anodized nose ring, the design has set the standard adapter for many major oil companies across the world. Straightforward construction and quality components allow operators to use this product for many years, only requiring minimal maintenance to keep it working optimally.

The entire range also features a flat bottom to guarantee complete product drainage and no contamination. Like other EMCO Wheaton fuel transfer products, our API adapters also prioritise high flow rates without a significant drop in pressure. This allows operators to process vehicles more efficiently.

Total weight is 3.53kg, owing to the design’s die-cast aluminium body and stainless-steel internal components. All adapters are shipped with Viton seals to ensure compatibility with high-octane fuels.

Variants include:

  • F5000 Non-Openable with or without sight glass
  • F5001 Openable fitted with two-stage fixed handle no sight glass
  • F5002 Openable with two-stage fixed handle and sight glass

EMCO Wheaton’s API adapters are found on tank trucks across the world, supporting safe and efficient loading and unloading.

EMCO Wheaton’s API adapters have been engineered for a long service life but fuel transfer is taxing on equipment. We offer a full range of OEM spares and in-field service kits that include everything needed to keep you moving. Most repairs are straightforward and can be completed remotely, but our team can assist you should a more significant issue need resolving.

Service Kits

  • 671670 – API S/GLASS KIT - F5002
  • 675908 – SIGHT GLASS KIT- TAMPER PROOF
  • 619636 – LEVER KIT
  • 670085 – LEVER & SHAFT KIT, VITON
  • 619638 – POPPET &CAM KIT, VITON
  • 619506 - ANODISED NOSE RING KIT- API

Fueling Efficiency: F5000 Series API Adapters for Road Tankers | Emco Wheaton

Discover EMCO Wheaton's F5000 series API adapters – the preferred choice for road tankers. Ideal for filling at loading racks and hose unloading at service stations, these adapters boast a simple design, ensuring durability for oil majors and global petroleum transporters.

Key Features:

  • Streamlined operations for efficient loading and unloading.
  • Conforms to API RP1004 standards for total compatibility.
