VAPOR TRANSFER VENTS PRODUCT
Vaporization of Fuel
Vaporization of Fuel
Vapor transfer vents are a critically important part of a vehicle’s wider vapor recovery system.
Fitted to the manhole cover, this product supports safe transfer during loading and unloading when the vaporization of fuel occurs.
Share
Aerodynamic Design
for High Flow
Durable
Built
Lightweight and
Compact
Pneumatic
Operation
Features & Benefits
EMCO Wheaton’s vapor transfer vents are compact, lightweight and feature a low profile for high flow rates with minimal pressure drop. These simple yet effective design features make the product ideal for both sequenced and non-sequenced compartment vent requirements.
Our transfer vents are built for durability and repeat use even in harsh vapor transfer conditions. Quality parts also extend the product’s service life, requiring only minimal maintenance that can often be carried out in the field.
This product is operated pneumatically and is suitable for mounting directly onto manhole covers or separate pads. It also features a poppet that opens into the tank to prevent surge pressure leakage and loss product in the event of a tanker rollover or other road accident.
Technical Info
All vents feature a tapered seat design with Viton O-rings to guarantee a tight seal. The body is made from die-cast aluminium while the internals are made from stainless steel.
Variants available include:
- F0592-100 Series Flanged Vapour Vents
- F0592-300 Series Screwed Vapour Vents
Vapour Transfer Ducting:
- H7061000002 395mm Long
- H70611000002 305mm Long
- H70612000002 160mm Long
Applications
This product is an essential feature for fuel carrying road tankers that feature a vapor recovery system. Its simple design makes it ideal for oil companies and transporters of petroleum products across every major market.
Aftermarket
High-quality components ensure a long service life. However, vapor recovery is a harsh, corrosive process, so ongoing maintenance is required to keep the system working optimally. EMCO Wheaton provides a range of repair kits, OEM spares and support from its service centres throughout the world. Most repairs can be carried out remotely but we also have a team of engineers on hand to help you troubleshoot in the unlikely event of a serious issue.
Service Kits
- 619299 – F0592-100 Series Kit
- 619190 – F0592-300 Series Kit

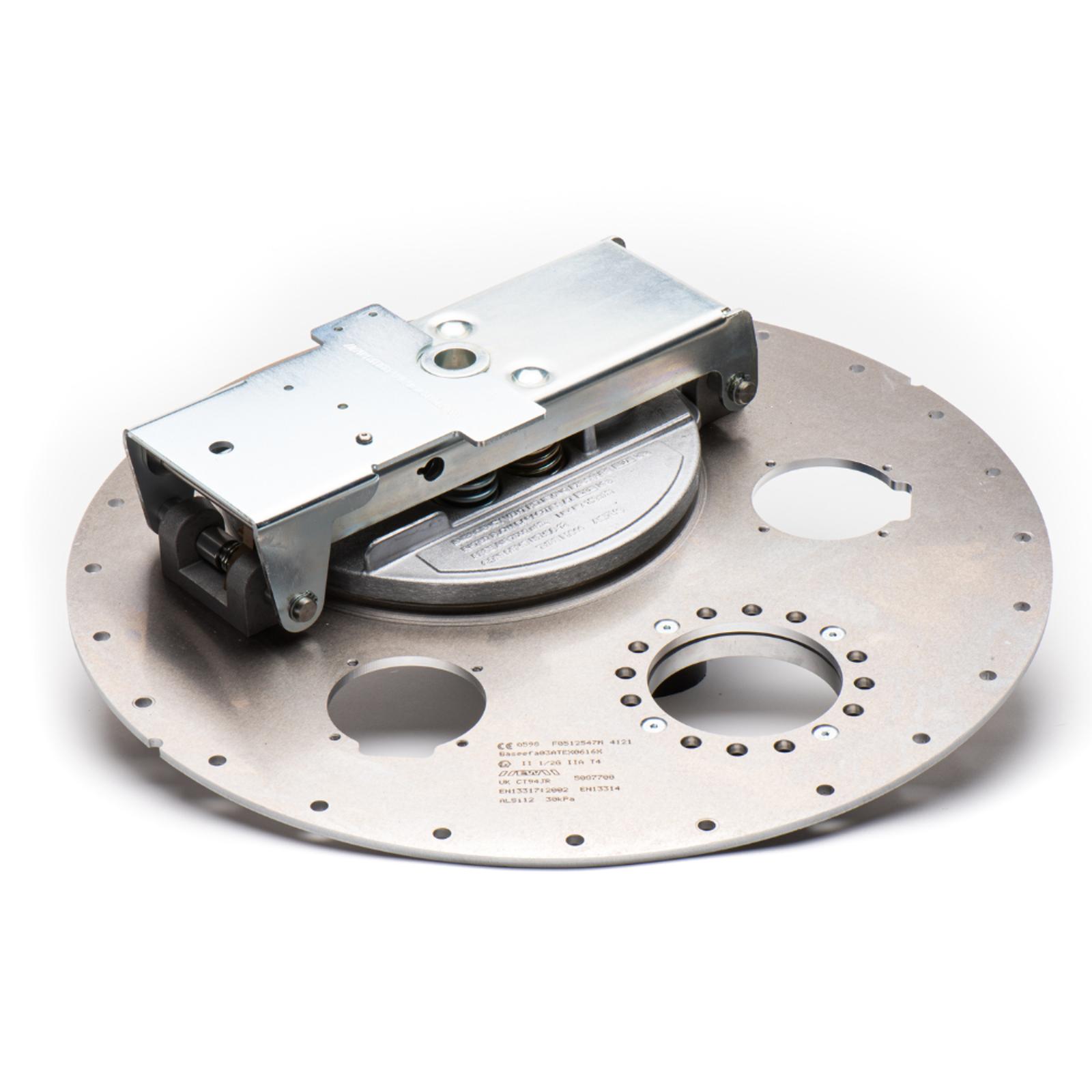

Manhole Covers & Accessories
EMCO Wheaton’s manhole covers provide an emergency vent for fuel tanks, keeping people safe should an accident occur.
Learn More

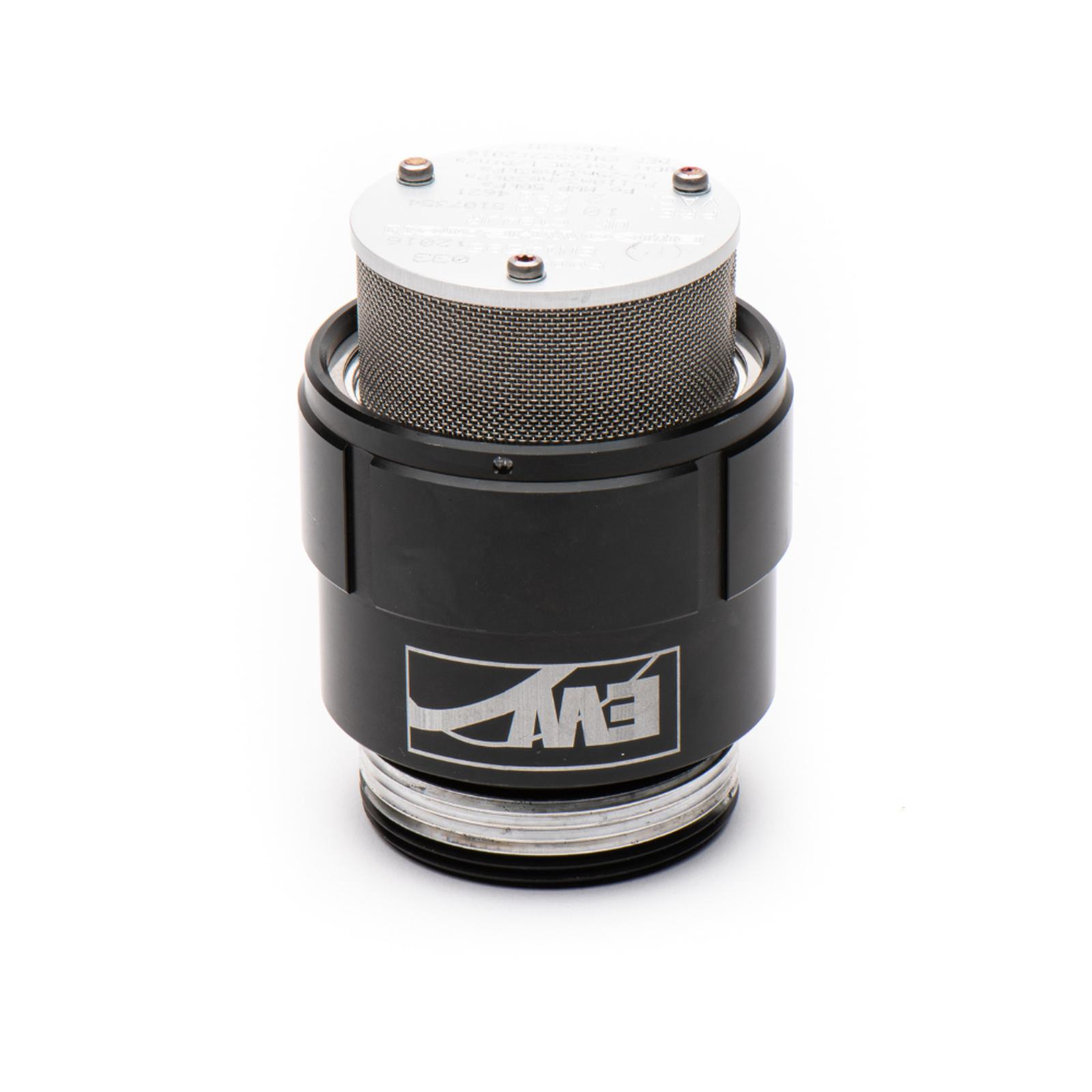

Fuel Tank Pressure Vacuum Vent
EMCO Wheaton’s fuel tank pressure vacuum vents are incorporated into all manhole covers as standard but are also available separately with a rain cap.
Learn More

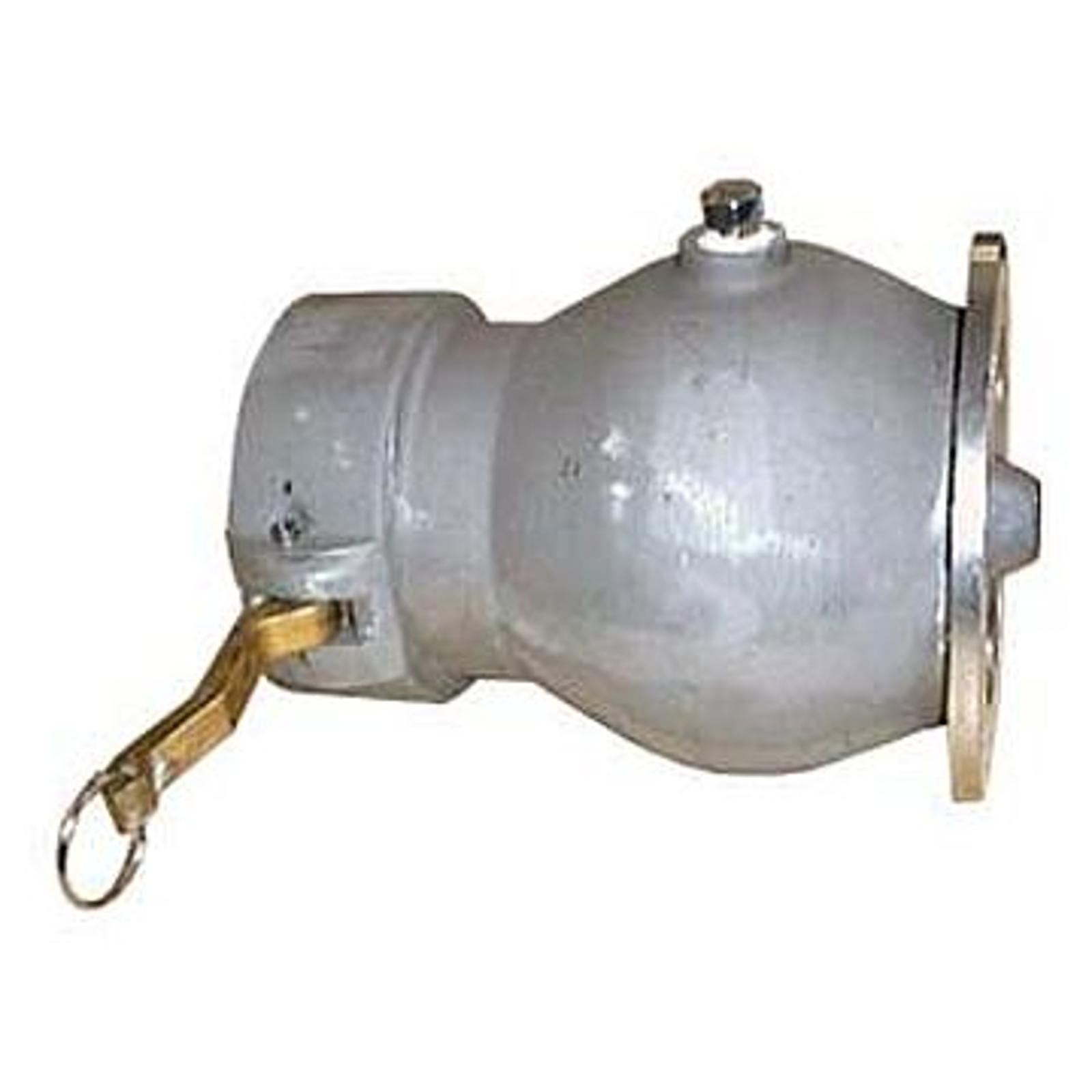

Vapour Recovery System - J0550
