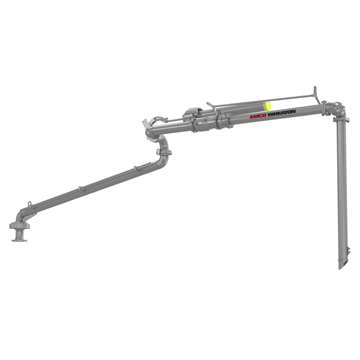

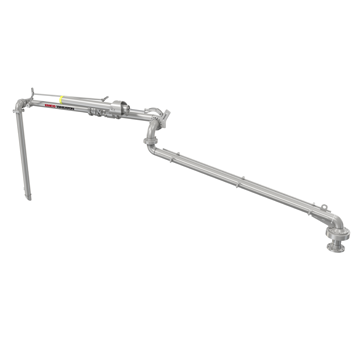

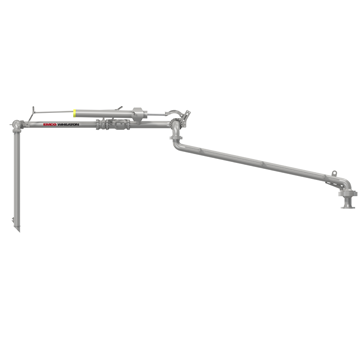

Long Reach Loading Arm with Unsupported Boom
The Long Reach Loader is specifically designed for top loading of multiple-compartment road or rail tankers.
The loading arm has a long reach and is suitable for applications where the manhole cannot be accurately positioned. It is perfect for petroleum and mineral oil Applications.
Share
Material of Arm Construction:
- Carbon Steel / Aluminum
Optional Accessories:
FIAB loading valve hold open or stay open
(up to 180 cSt / optional up to 380 cSt)
• O/C Switch for FIAB Loading valve
• Remote control for FIAB Loading valve
• Check Valve / vacuum breaker
• Stop Device
• Drip bucket
• Up / Down Switch
• Orientation Switch
• Locking device (Parking position)
• Junction Box
• Goose neck Inlet swivel joint design
• Sliding datum bracket with overfill device
• Drop pipe outlet - 45°
• Deflector
• SECURIM (with bottom contact switch)
Temperature Design:
- max. -20°C / +110°C
Seals:
- Viton
- PTFE
- *More options upon request
Balancing Method:
- Spring Cylinder
Inlet Flange:
- ANSI 150 & 300 lbs / EN PN16 & 40
Design Pressure:
- Based on flanges and accessories.
- Typical – 150 psi
- *Higher pressure ratings available but cannot exceed 580 PSI
Design Temperature:
- 10 bar
