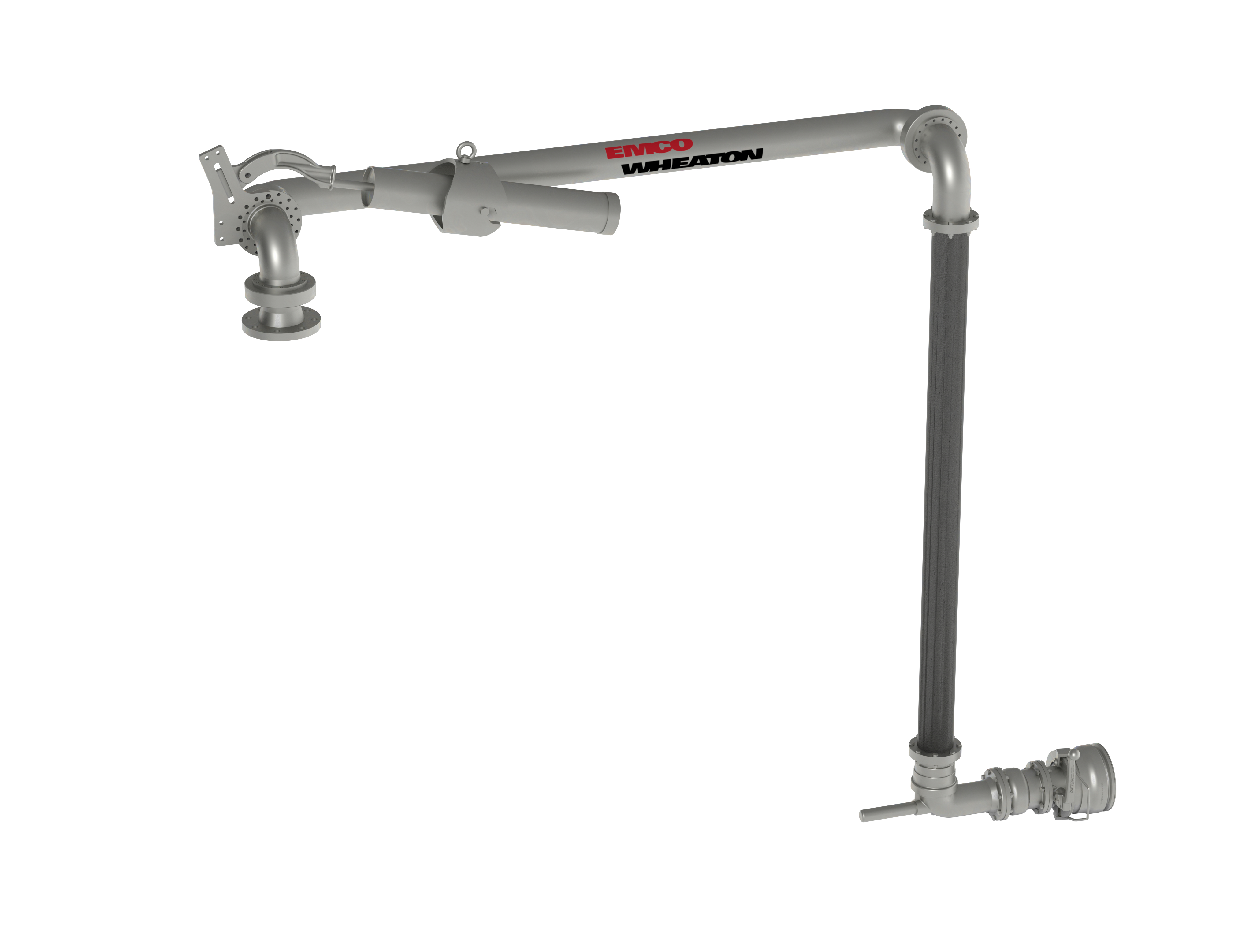

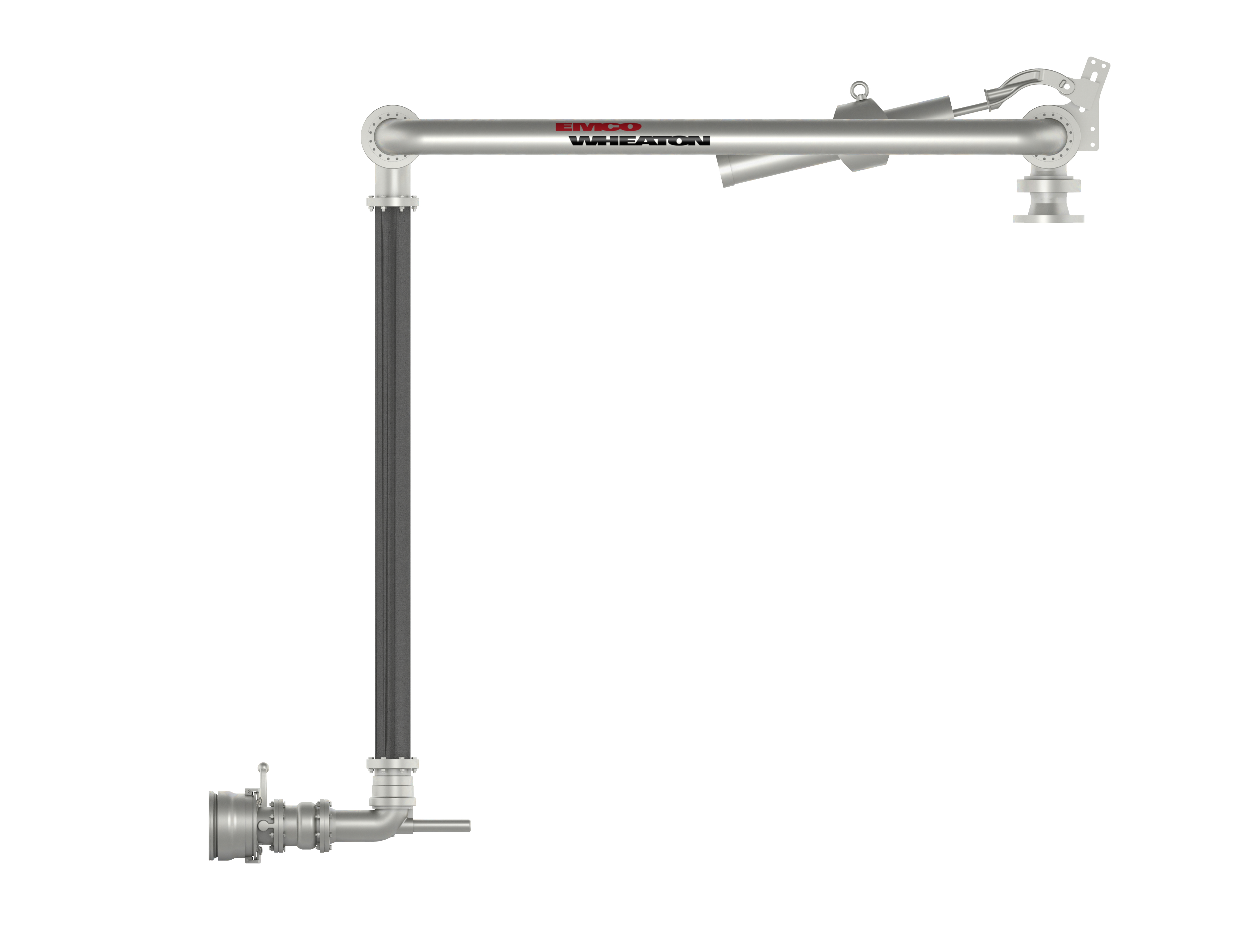

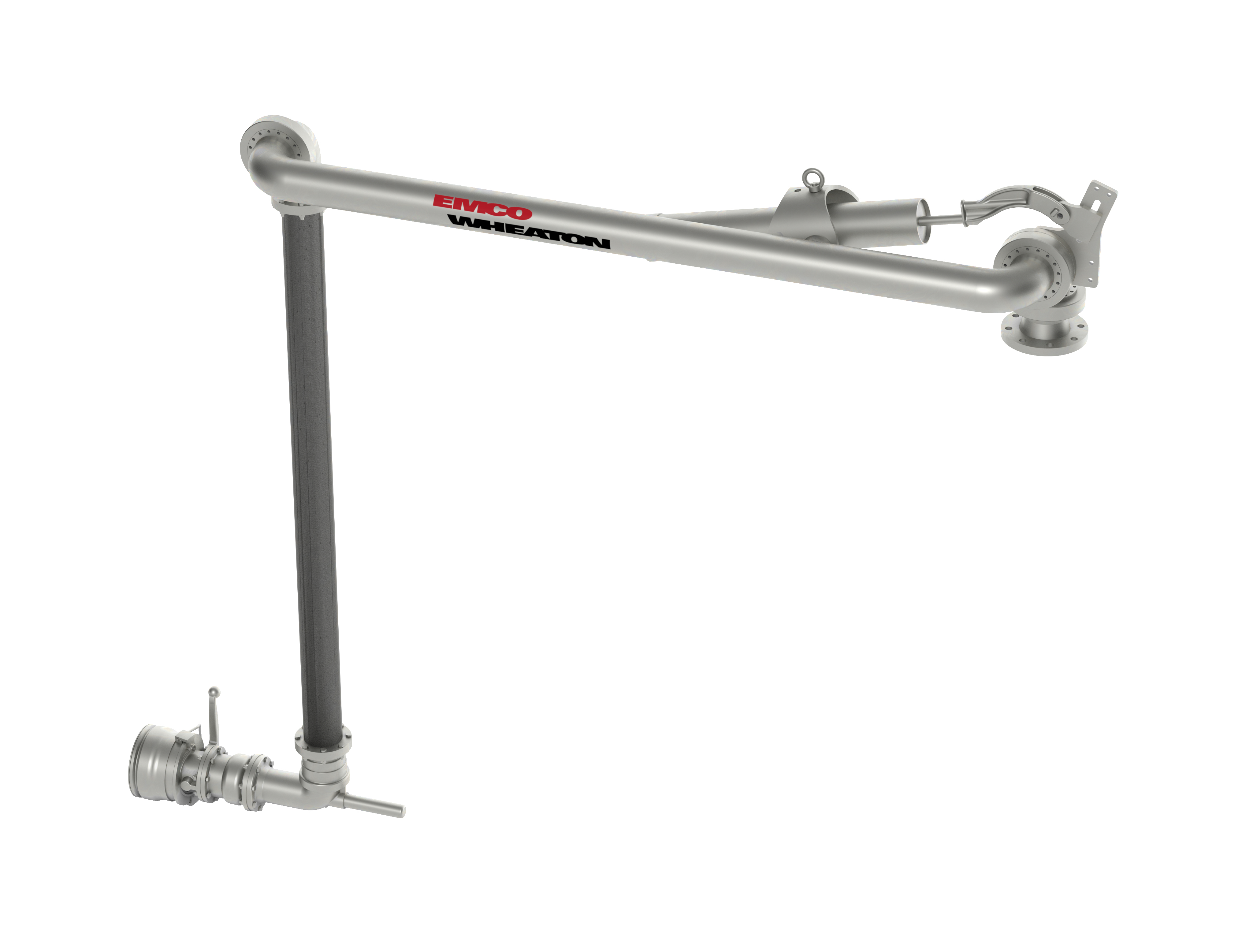

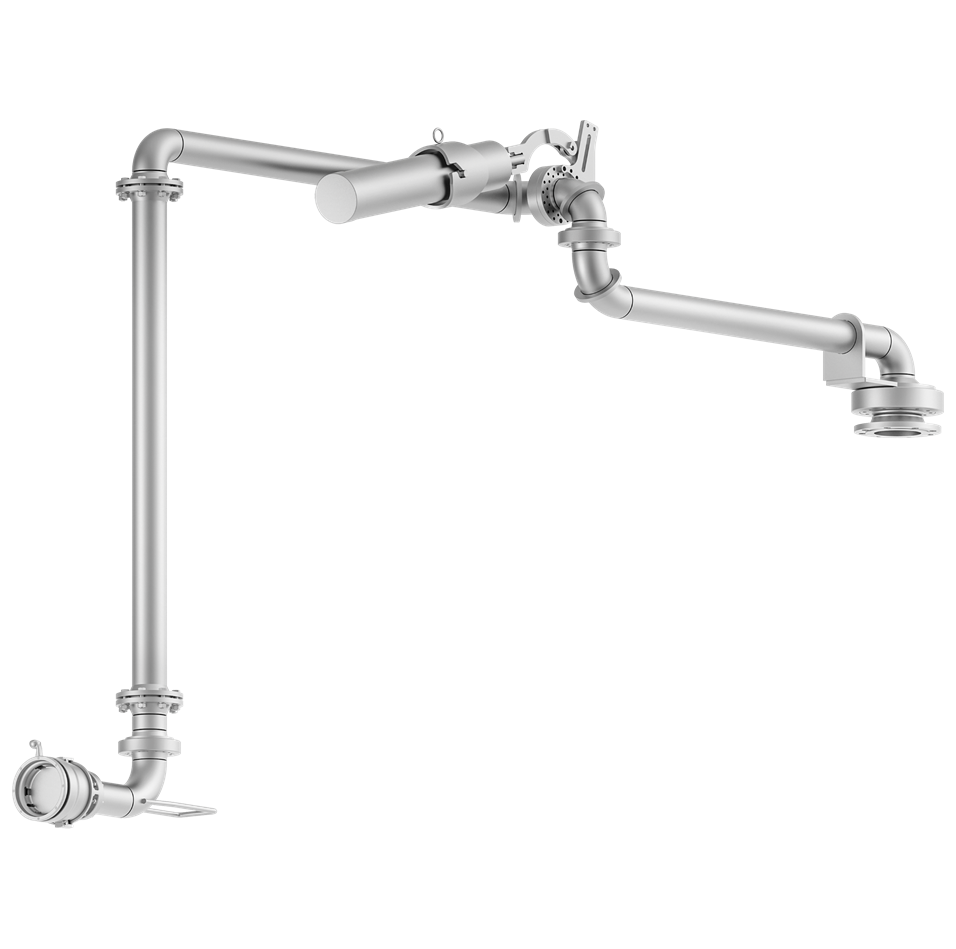

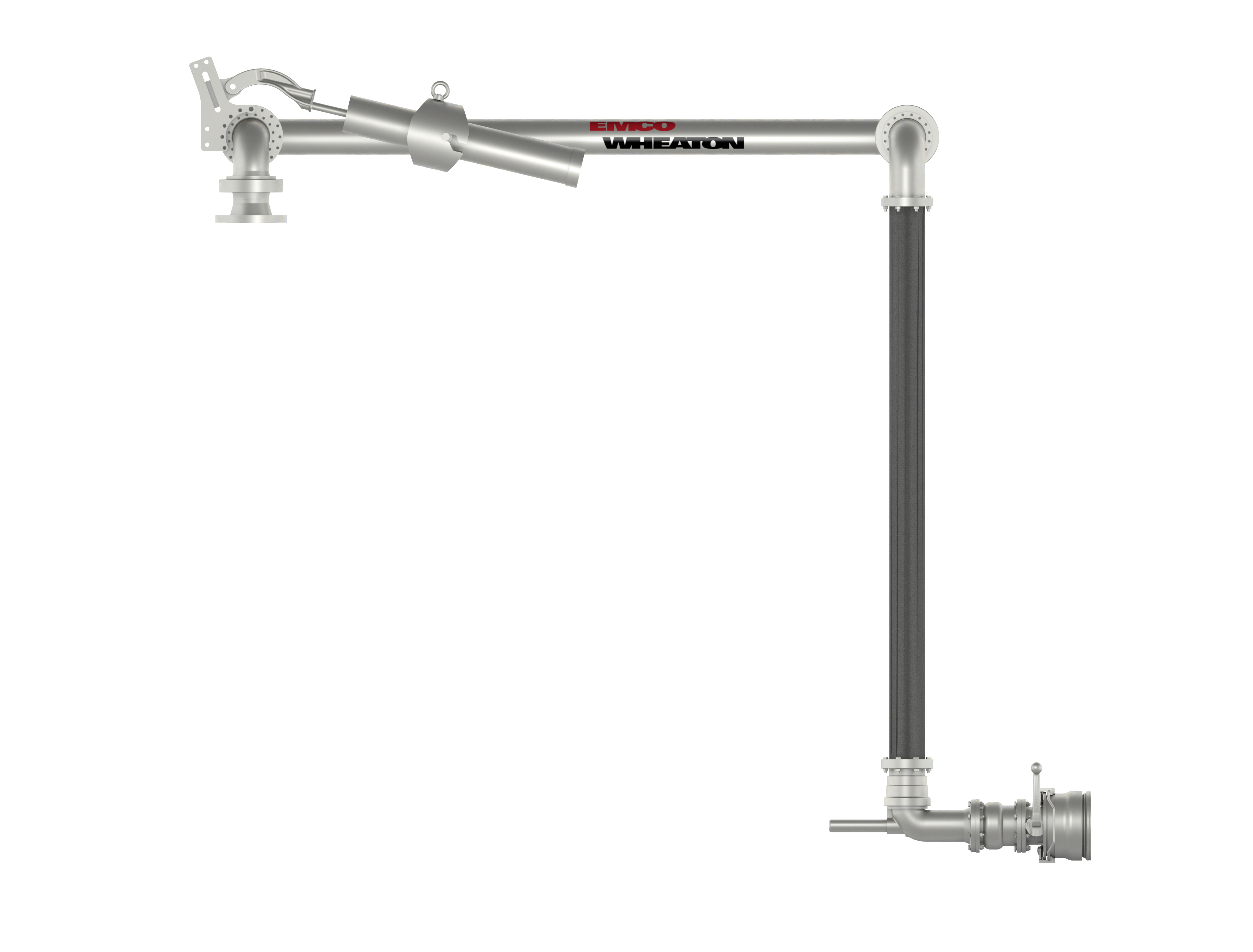

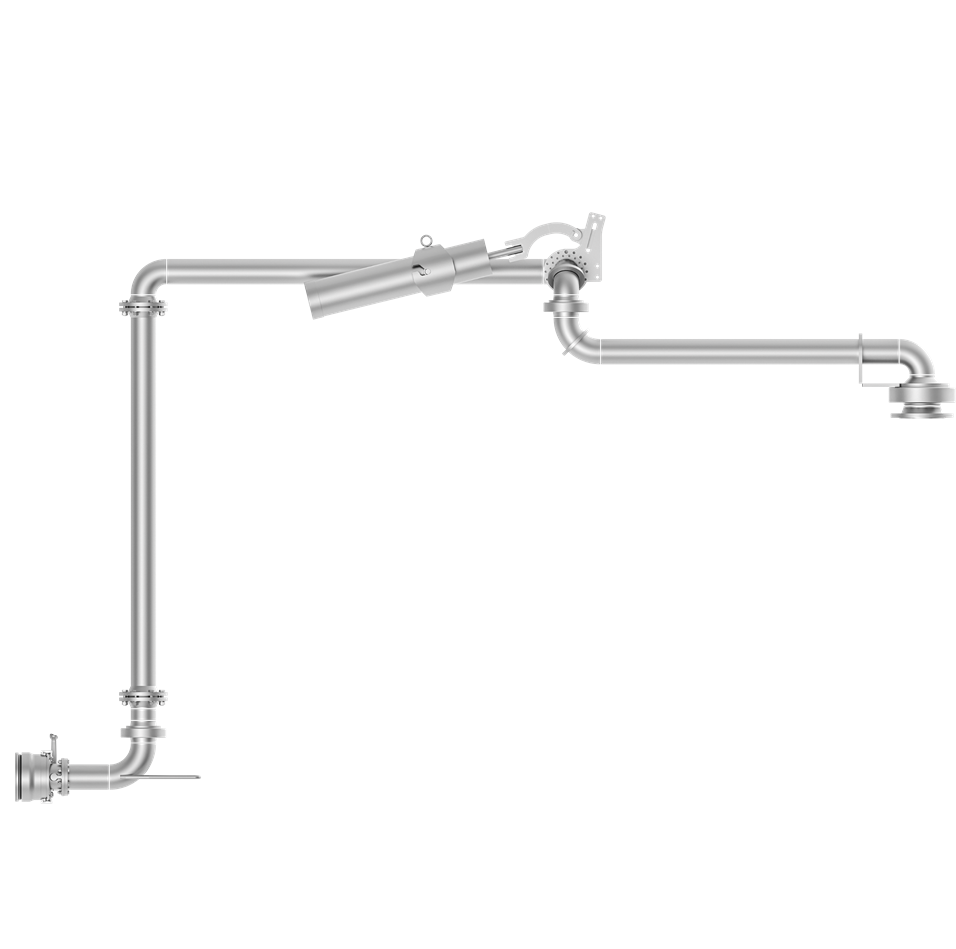

Bottom Hose Loaders
The Bottom Hose Loading Arm is designed specifically to use multiple arms together as a Bottom Hose Loading Station for bottom filling of multiple compartment tank trucks.
Bottom hose loading stations provide unrestricted cross-over and an extended working envelope.
Share
Europe
Sizes:
- 4"
Construction Material:
- Carbon Steel/Aluminum
Inlet Flange:
- ANSI 150 & 300 lbs / EN PN16 & 40
ANSI 150 & 300 lbs / EN PN16 & 40nly)
Design Pressure:
- 10 bar / 16 bar
Design Temperature:
- Max. -20°C / +110°C
Balancing Method:
- Spring Cylinder
(Based on seals and accessories / Broader temperature ranges are available on request)
US
Sizes:
- 4 = 4-Inch
Construction Material:
- Carbon Steel
Seal Material:
- V = Viton
- B = Buna
Design Pressure:
- Max. 40 bar (580 psi) up to shut off valve
Design Temperature:
- -49°F to +572°F
Balancing Method:
- Spring Cylinder
Options:
- C = with J0451 coupler, spool piece, style 30 aluminum swivel
- N = no swivel, no coupler, no spool piece
